TVGP01

名称:TVGP01

详细信息

系列: TVGP01

特点: Flat Stem

尺寸: 12.0X12.0mm

产品分类: 轻触开关 - G系列 / 12x12


Applications

※ Operating switches in all types of electronic equipment such as audio
※ apparatus,office equipment,communication apparatus,measuring
※ instruments,TV sets,VCRs,etc.


Features

※ Snap-in type, which can be directly mounted on PC board.
※ Some of output terminals can be also used as jumper leads, thus
※ Making circuit design easy.
※ Standard knobs are available.

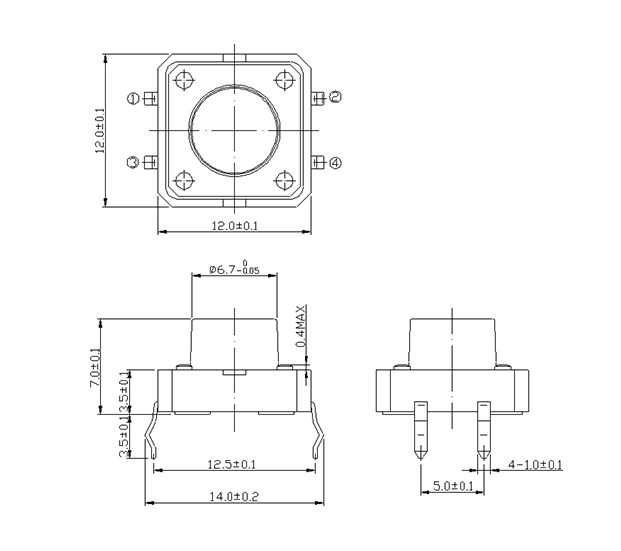

Dimensions

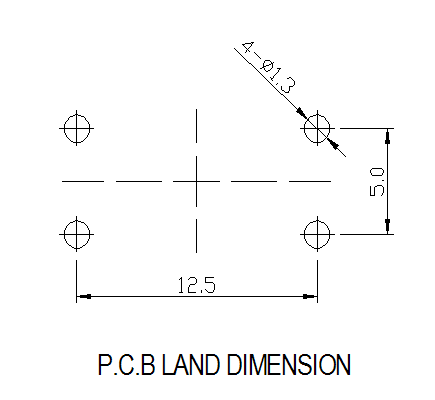

PCB layout

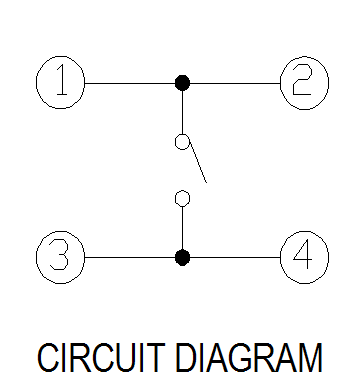

Circuit diagram

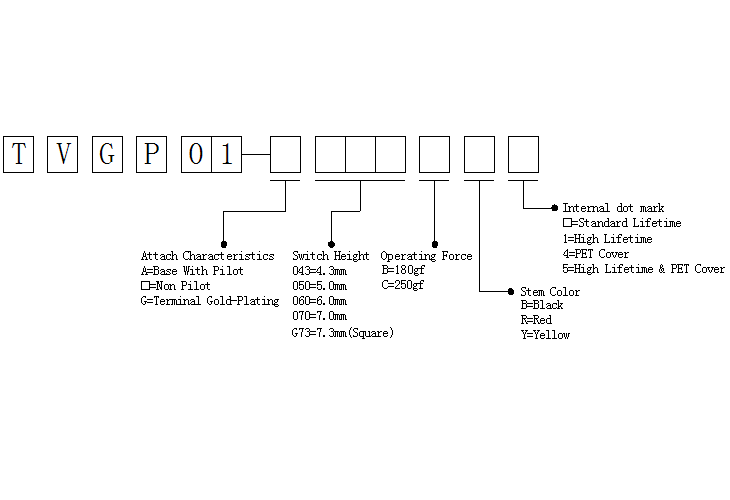

HOW TO ORDER

PRODUCT LINE

PART NO. TYPE Operating force Operating direction travel Operating ife Initial contact resistance Stem height
TVGP01-100BB Snap-in 180gf Top push 0.25 100,000 cycles 500mN max 10mm

Package

BULK:500PCS/BULK
